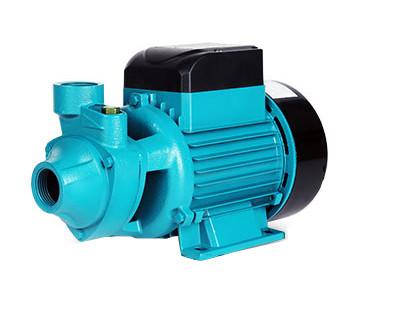

Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump

Brand Name : ZOZHI

Model Number : QB-70

Certification : CE/SGS/ISO

Place of Origin : Fujian China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 30000pcs per month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons , overall size:330x180x220mm/pc

Rate Power : 0.75HP / 0.55KW

Flow Max : 45L/Min

Head Max : 50M

Suction Max : 9M

Inlet/Outlet : 1"x1"

Speed : 3450RPM 60HZ

Product Name : Electric Motor Water Pump

Application : Boosting

Contact Now


Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump


APPLICATION FOR PERIPHERAL PUMP

The pump is with peripheral impeller containing numerous radial blades on its edge. Water is thrown outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generate high pressure. These pumps have a compact size and are very economical. They have
various appearances and motor shells to the different operating requirements.
The normal power standard is 220V 50Hz single phase. Three-phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request.

SPECIFICATIONS FOR PERIPHERAL PUMP
1. Pump body: Cast iron
2. Impeller: Brass
3. Motor: Closed, externally ventilated
4. Insulation class: B (Class F if required)
5. Protection class: IP44 / IP54
6. Duty: Continuously rated
7. Mechanical seal:12 ceramic steatite/metalized carbon
DIMENSIONS

TYPE DIMENSIONS(mm)
a f h H1 H2 i m m1 n n1 w b g s
QB-60 42 265 154 63 80 20 98 80 120 100 63 22 8 7
QB-70 55 305 179 71 85 20 110 90 134 112 68 23 8 7
QB-80 55 305 179 71 85 20 110 90 134 112 68 23 8 7
QB-90 90 300 174 71 85 20 110 90 134 112 68 23 8 7


PERFORMANCE DATE

TYPE Power Ampere R.P.M Q.Max H.Max S.Head Pipe Dia L×W×H N.W
HP kW 1220V (l/min) (m) (m) (mm) (kg)
QB-60 0.5 0.37 2.6 2850 35 35 9 1"×1" 280×145×180 5.8
QB-70 0.75 0.55 3.6 40 45 310×180×200 9.7
QB-80 1 0.75 4.8 60 50 1-1/2"×1-1/2" 10.5
QB-90 1 0.75 4.8 50 70 1"×1" 330×180×200 11.5



Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump


Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
